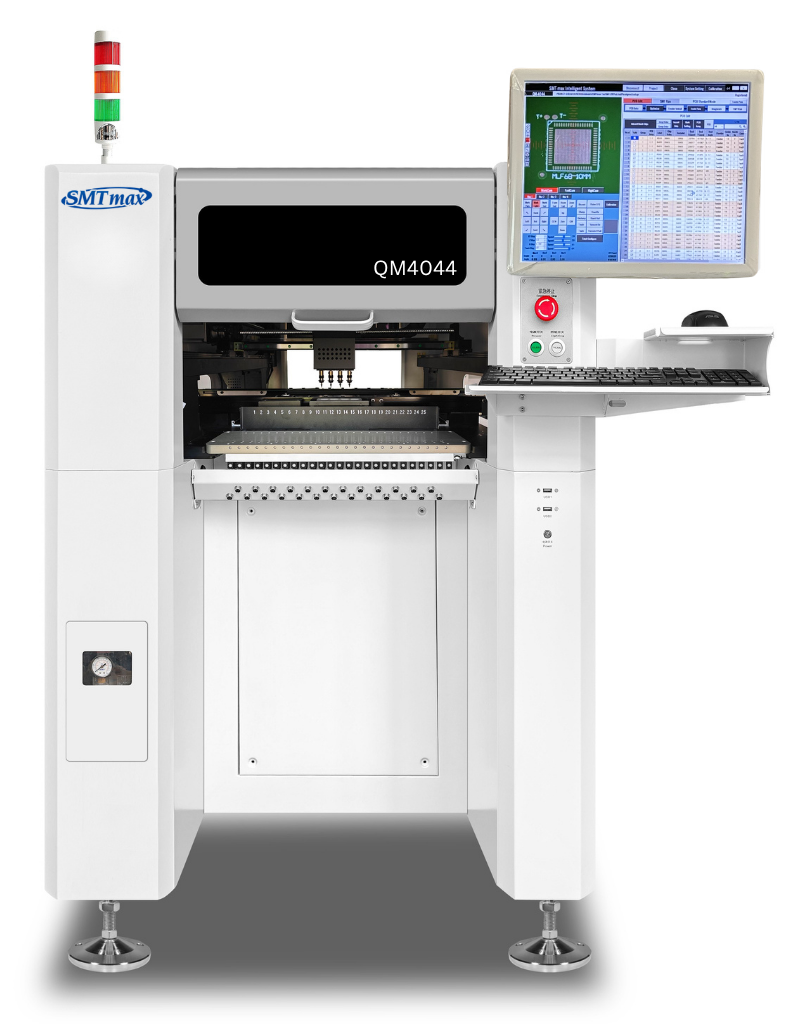

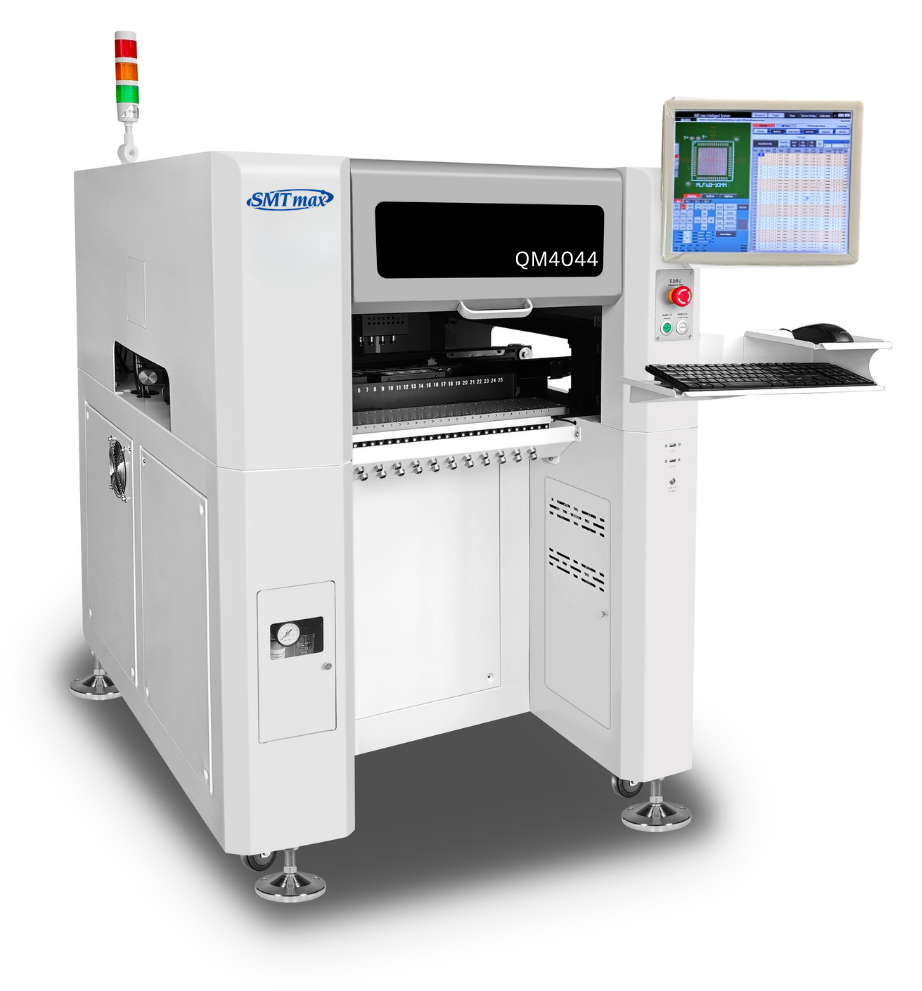

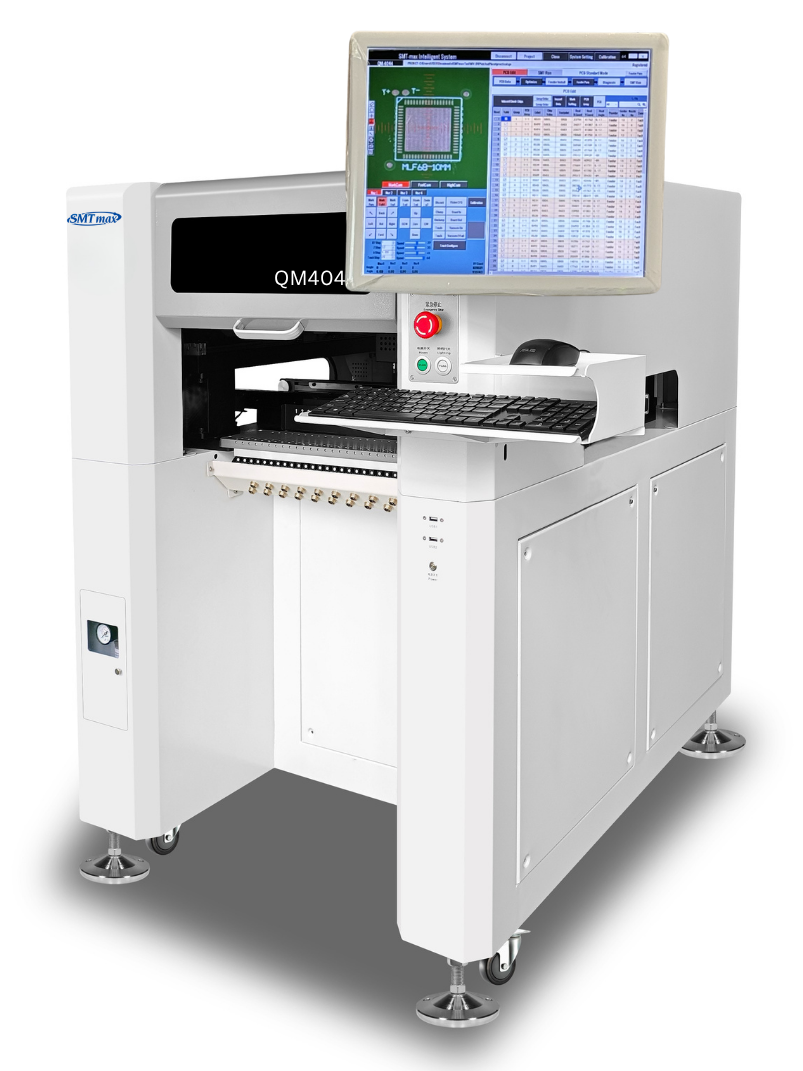

A four-head stand-alone pick and place machine built for growing in-house SMT production, with a 44-feeder capacity, internal conveyor and multi-camera vision system.
Package includes the automatic conveyor system, four nozzles, computer and monitor, pneumatic and electrical feeder-ready ports, waffle tray mounting brackets and PPM operation software.
The QM4044 is designed for customers moving beyond prototyping into regular in-house SMT assembly. Four placement heads and 44 feeder positions provide more component capacity and higher production throughput while keeping the machine compact enough for stand-alone operation.

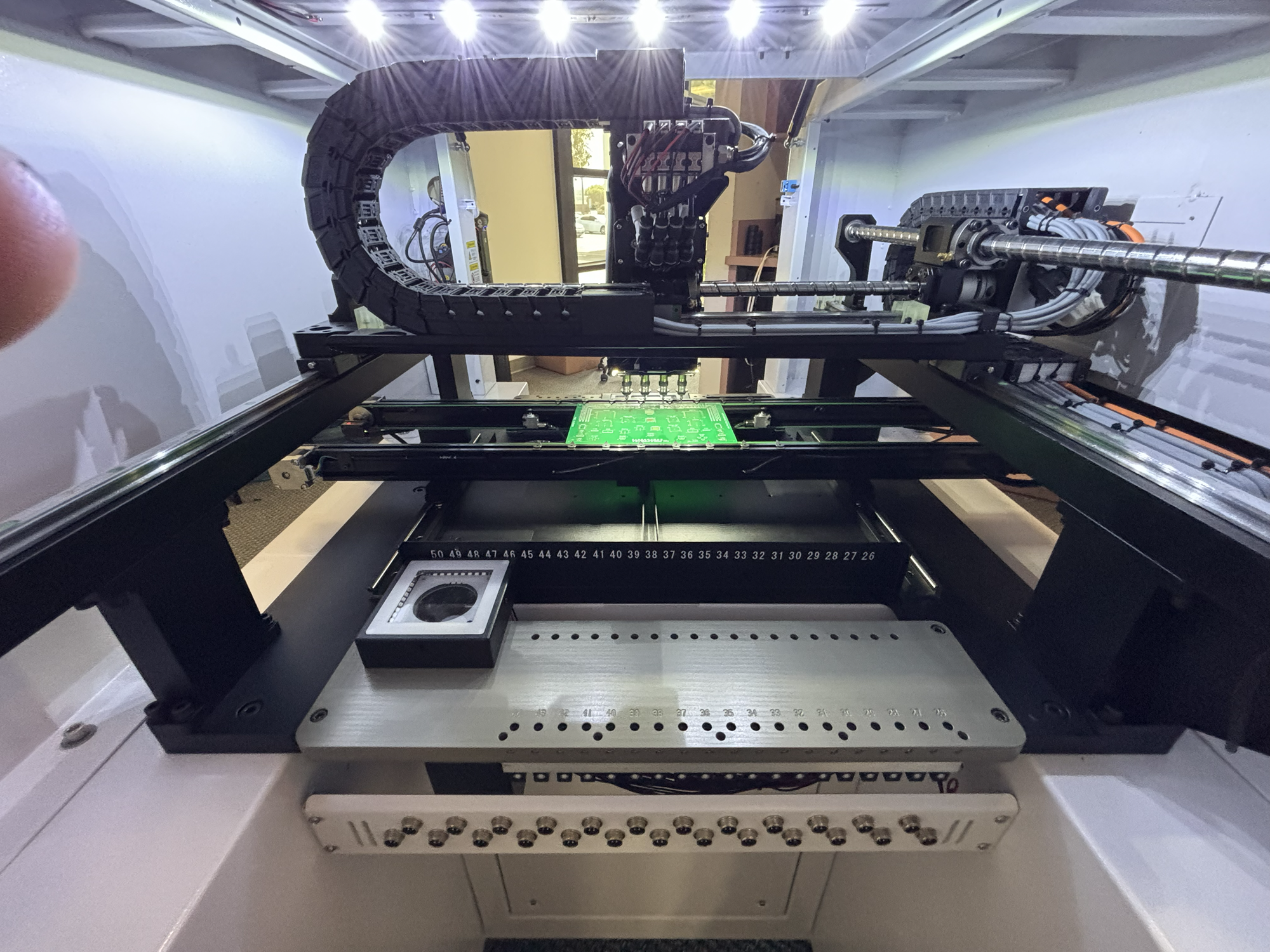

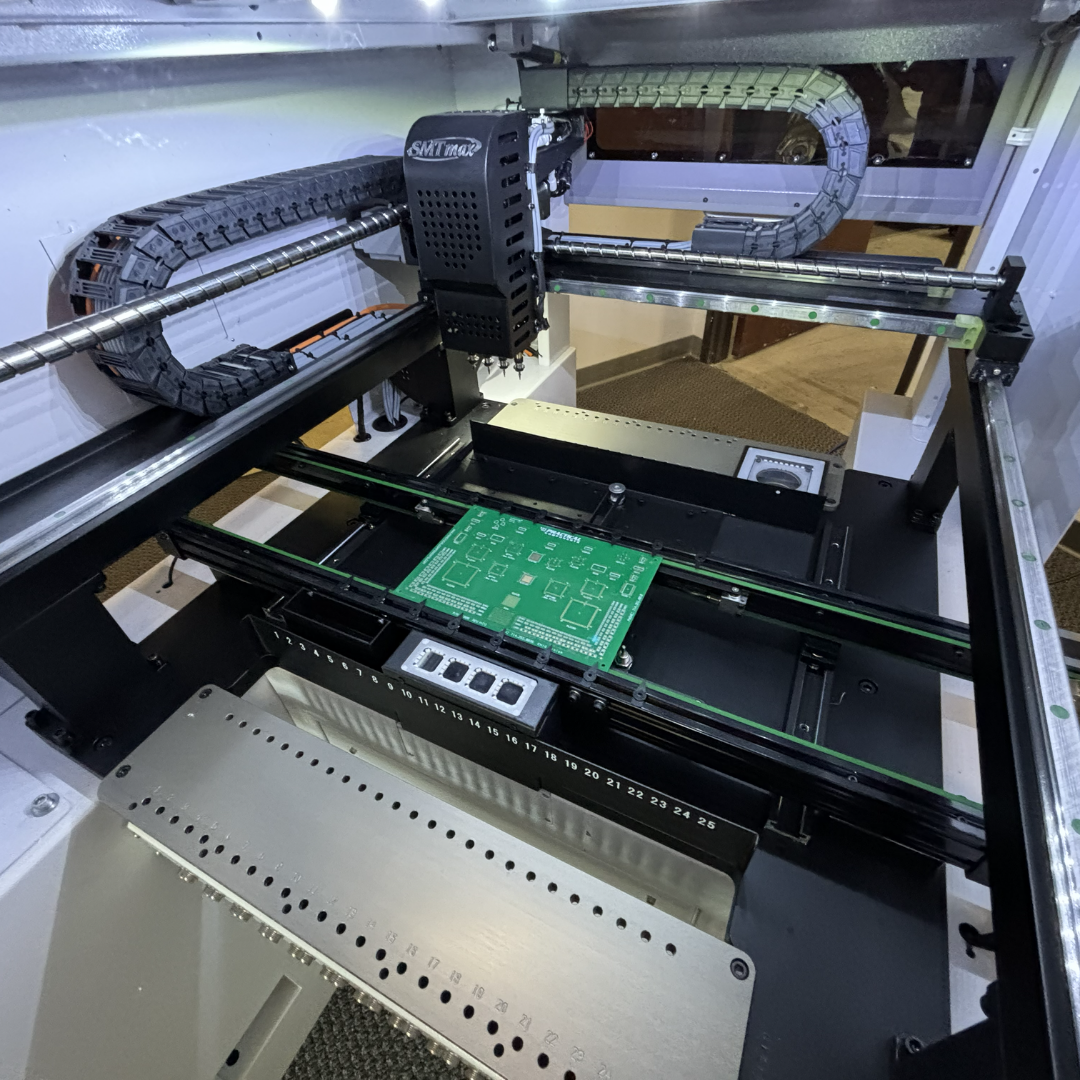

The vision system uses four upward-looking cameras for fast component inspection plus a precision camera for larger or more demanding devices. The built-in conveyor also allows the QM4044 to operate as a stand-alone machine today and become part of a fuller SMT line later.

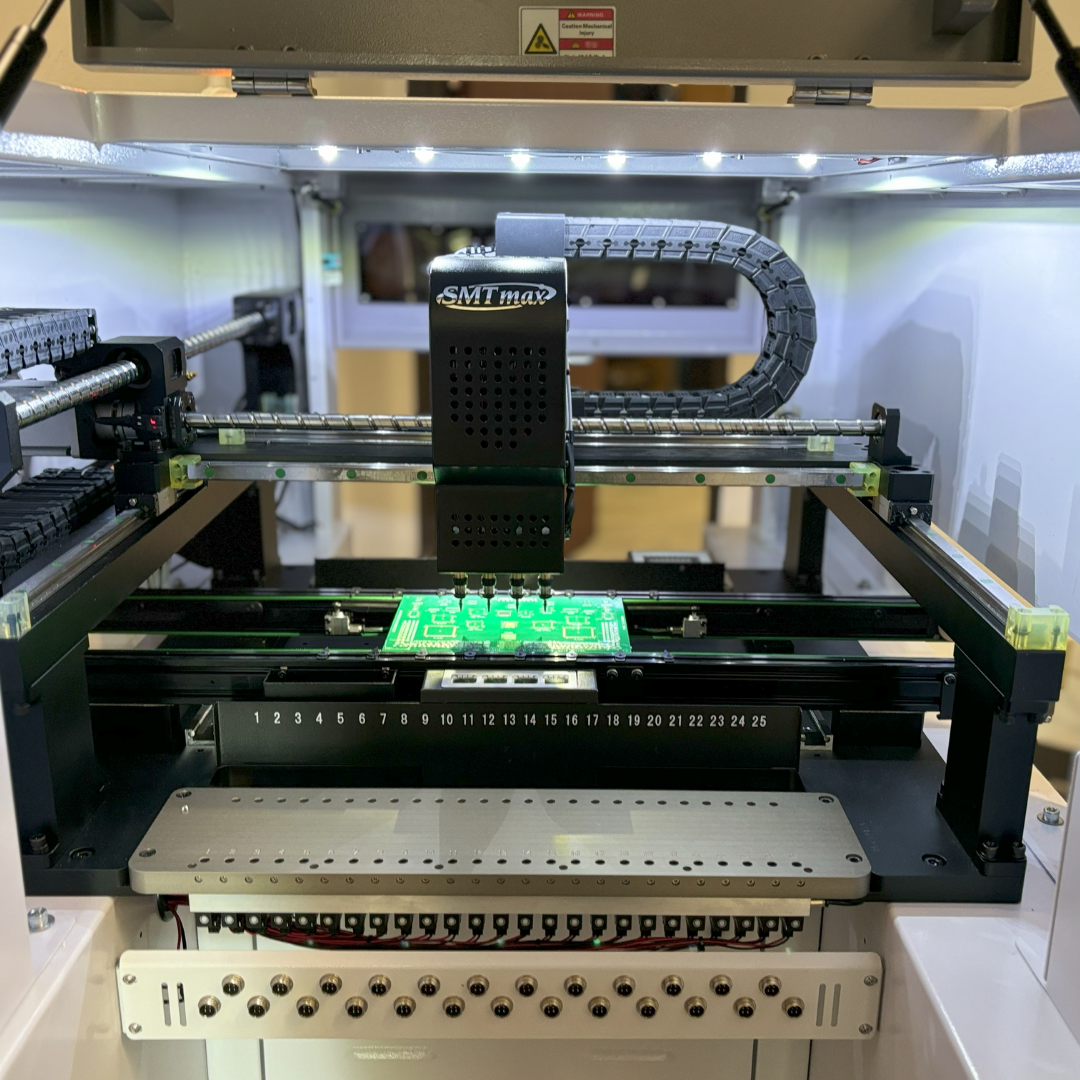

Watch the QM4044 run a real placement job and get a closer look at the feeder area, vision system and machine controls.
| Estimated throughput | 6,000–7,000 PPH |
|---|---|
| Working area | 13 × 10 in (350 × 260 mm) |
| Placement heads | 4 |
| Feeder capacity | 44 positions |
| Standard component capability | 0402 and larger; smaller-component upgrade available |
| Vision system | 4 upward-looking cameras plus 1 precision camera |
| X/Y resolution | 0.0005 in |
| Positioning accuracy | 0.001 in |
| Rotational resolution | 0.045° |
| Z / Theta control | Fully programmable digital Z-axis and rotation |
| PCB alignment | Fiducial recognition with board position correction |
| Programming | Camera teach mode, Gerber graphics and CSV import |
| Power | 110 V AC / 60 Hz or 220 V AC / 50 Hz |
| Power consumption | 750 W |
| Air requirement | 60 PSI shop air |
| Machine dimensions | 45 × 35 × 52 in |
| Net weight | 620 lb |
| Warranty | 12-month factory warranty, parts and labor |
| Training | Complimentary training at SMTmax in Cypress, California |
Send us your PCB dimensions, BOM and production goals. We'll help confirm machine fit and feeder requirements before you order.
