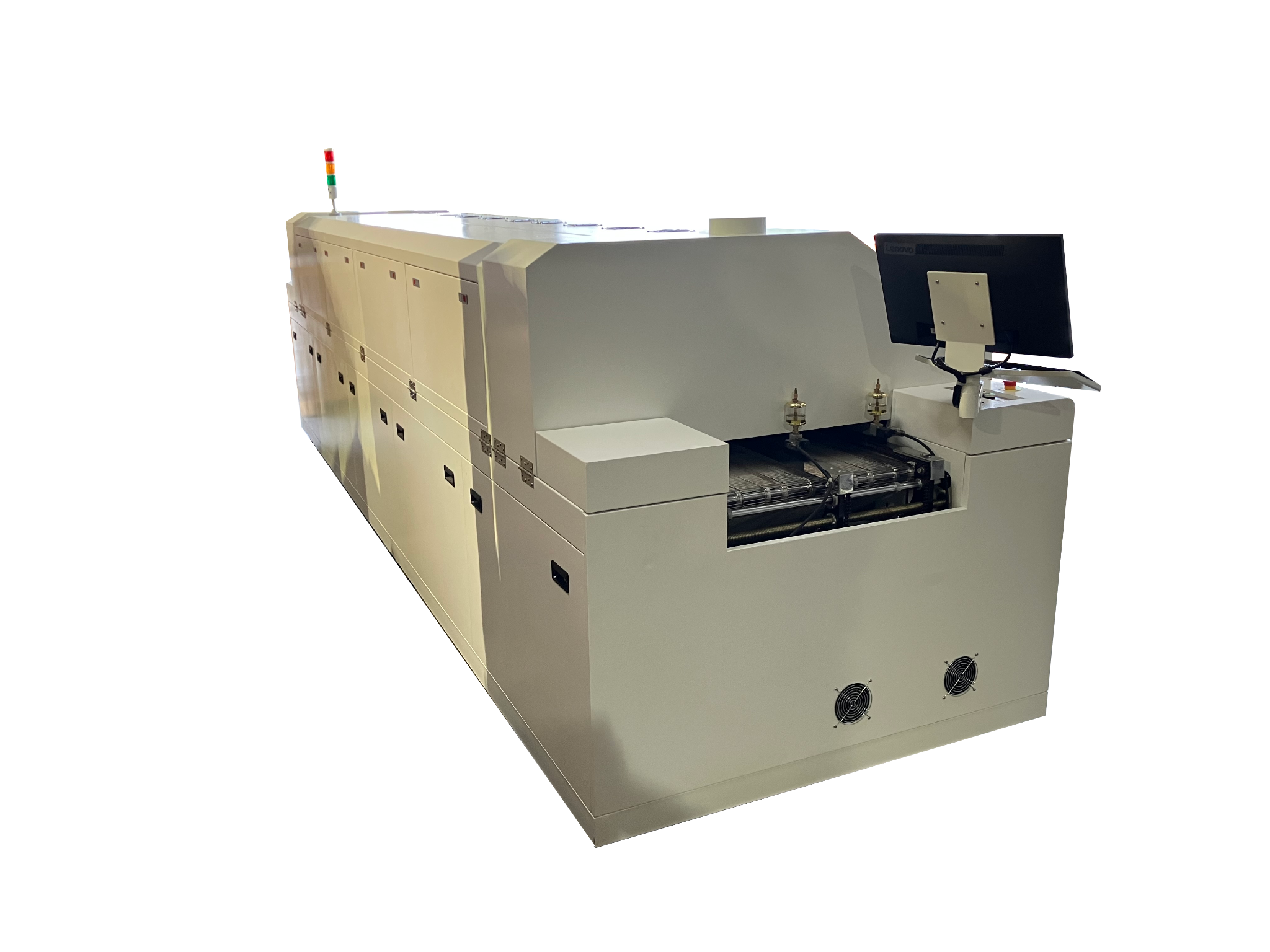

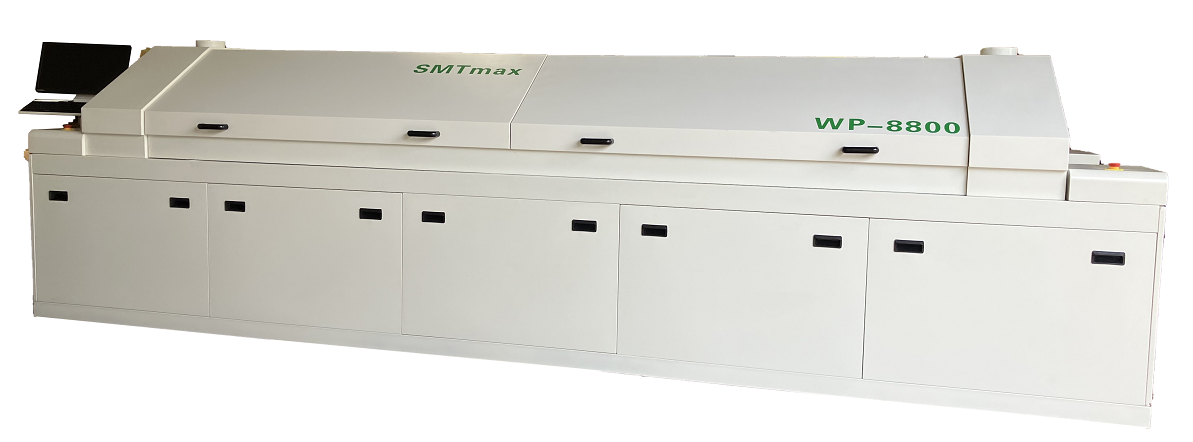

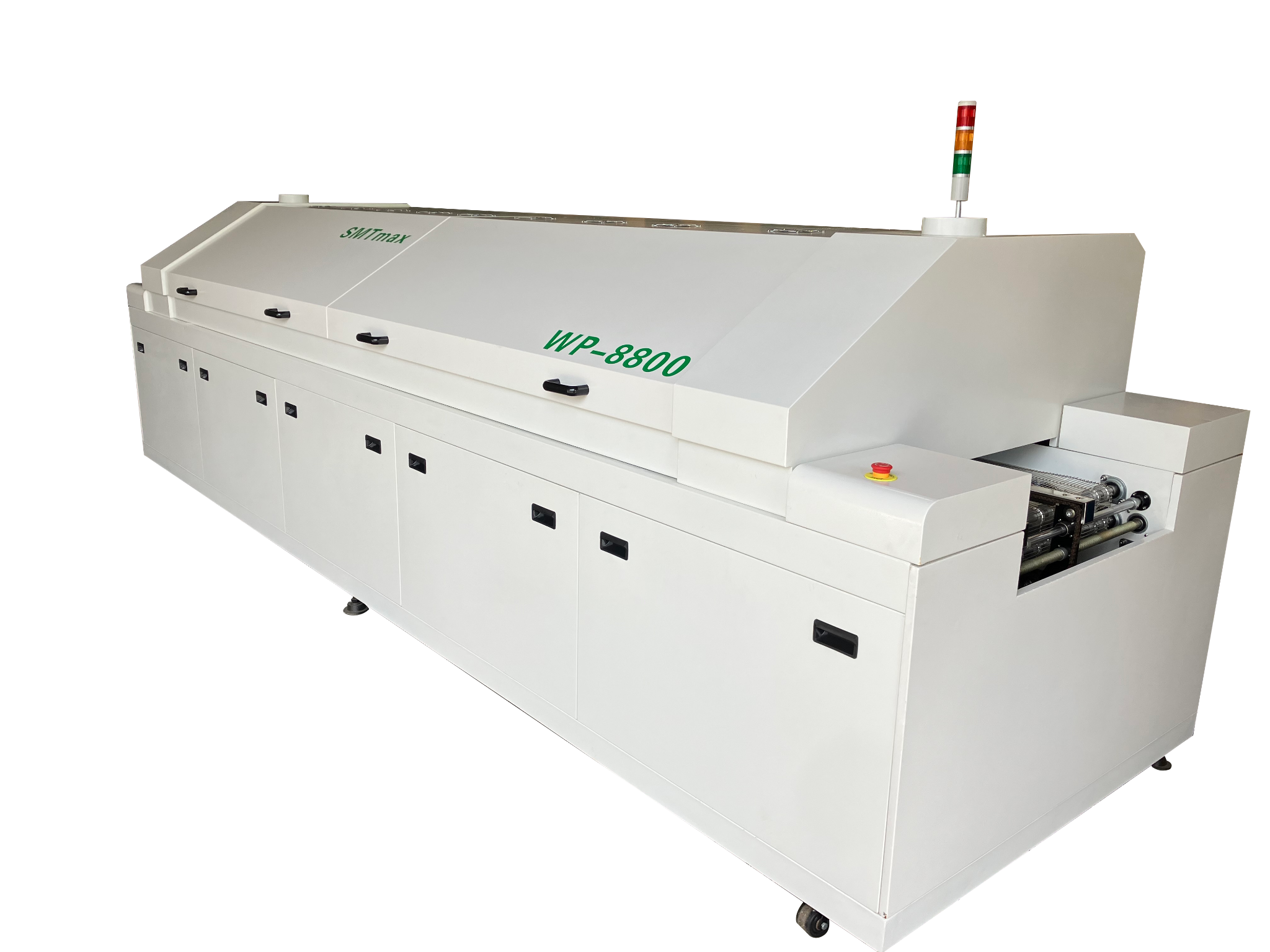

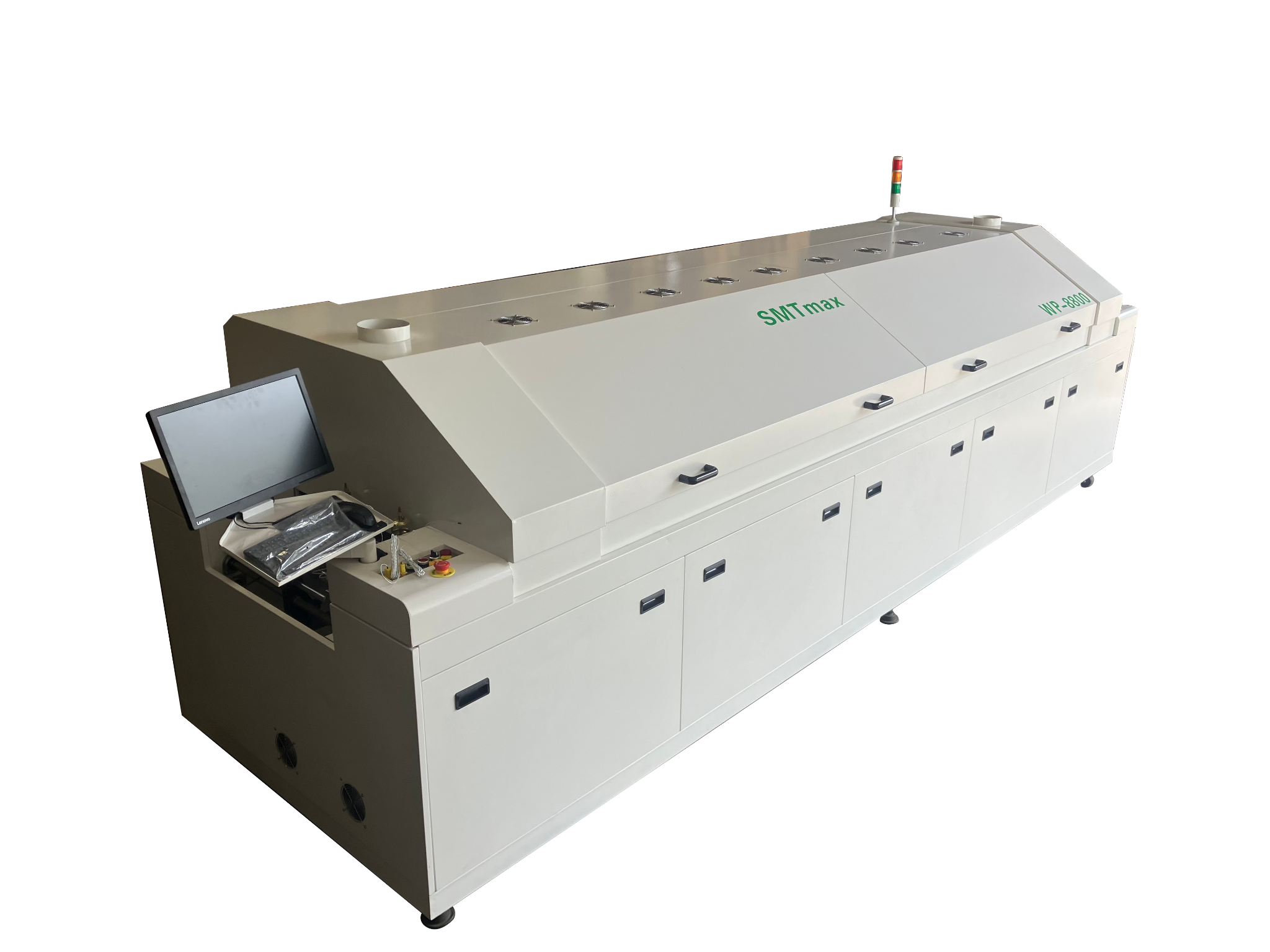

A large inline reflow platform with eight top and eight bottom heating zones, a 600 mm conveyor and computer/PLC control for continuous SMT production.
Designed for high-volume lead-free reflow with adjustable conveyor speed, multi-zone hot-air circulation and integrated thermal profiling.

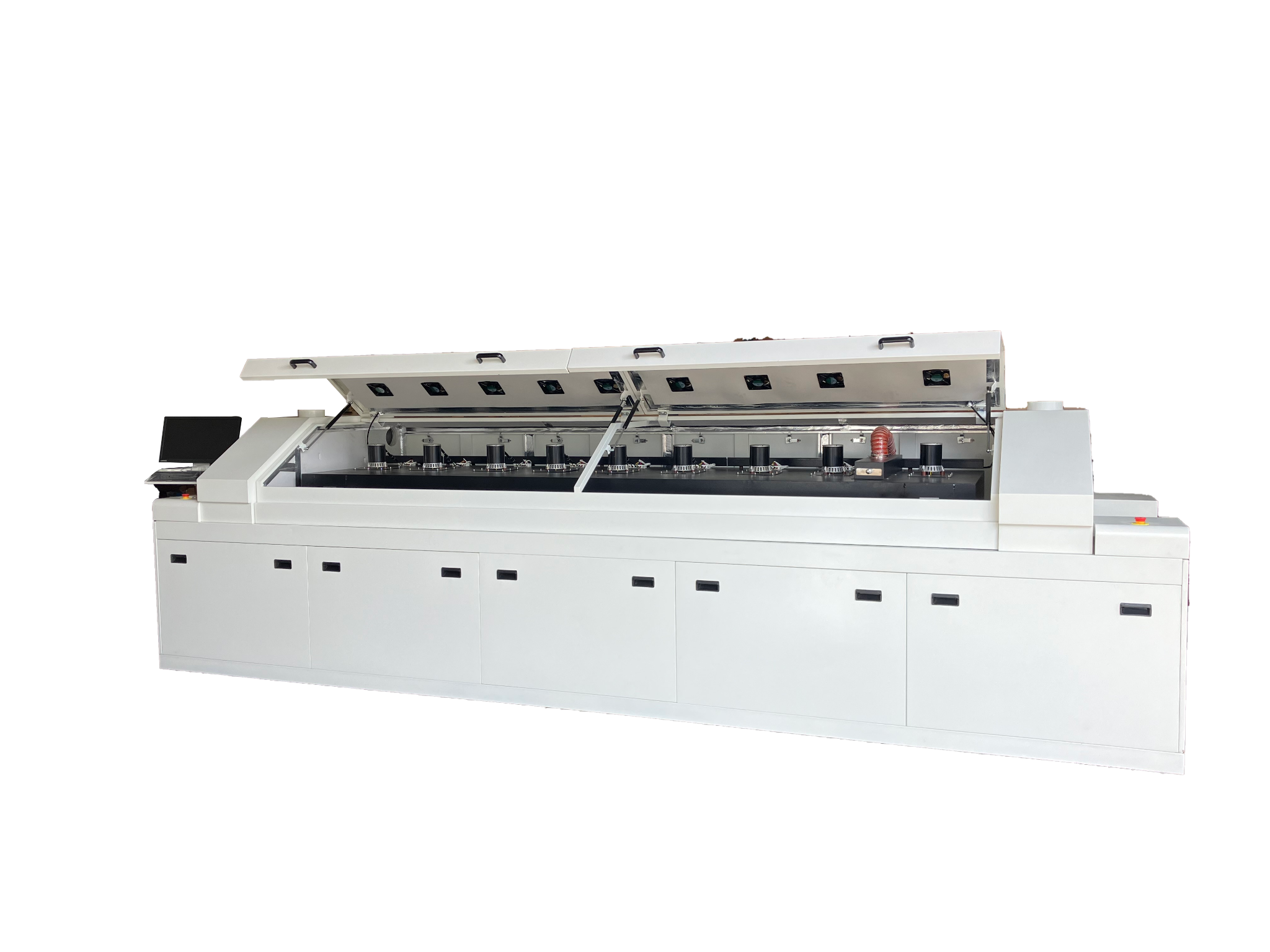

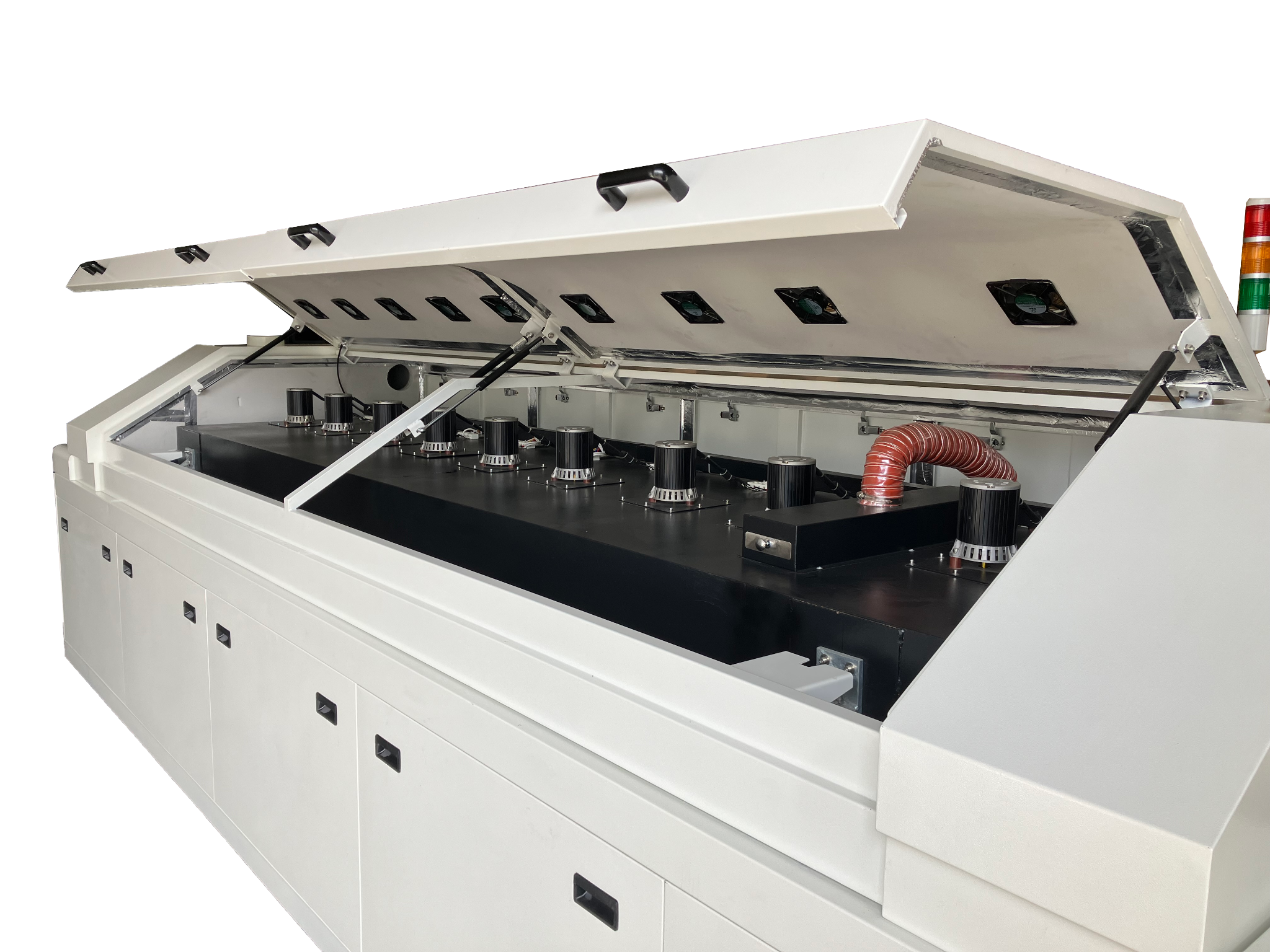

The WP-8800 uses eight upper and eight lower temperature-control zones for a total of sixteen independently managed heating sections. Its hot-air circulation architecture is designed to provide stable, uniform heating through preheat, reflow and controlled drying stages.

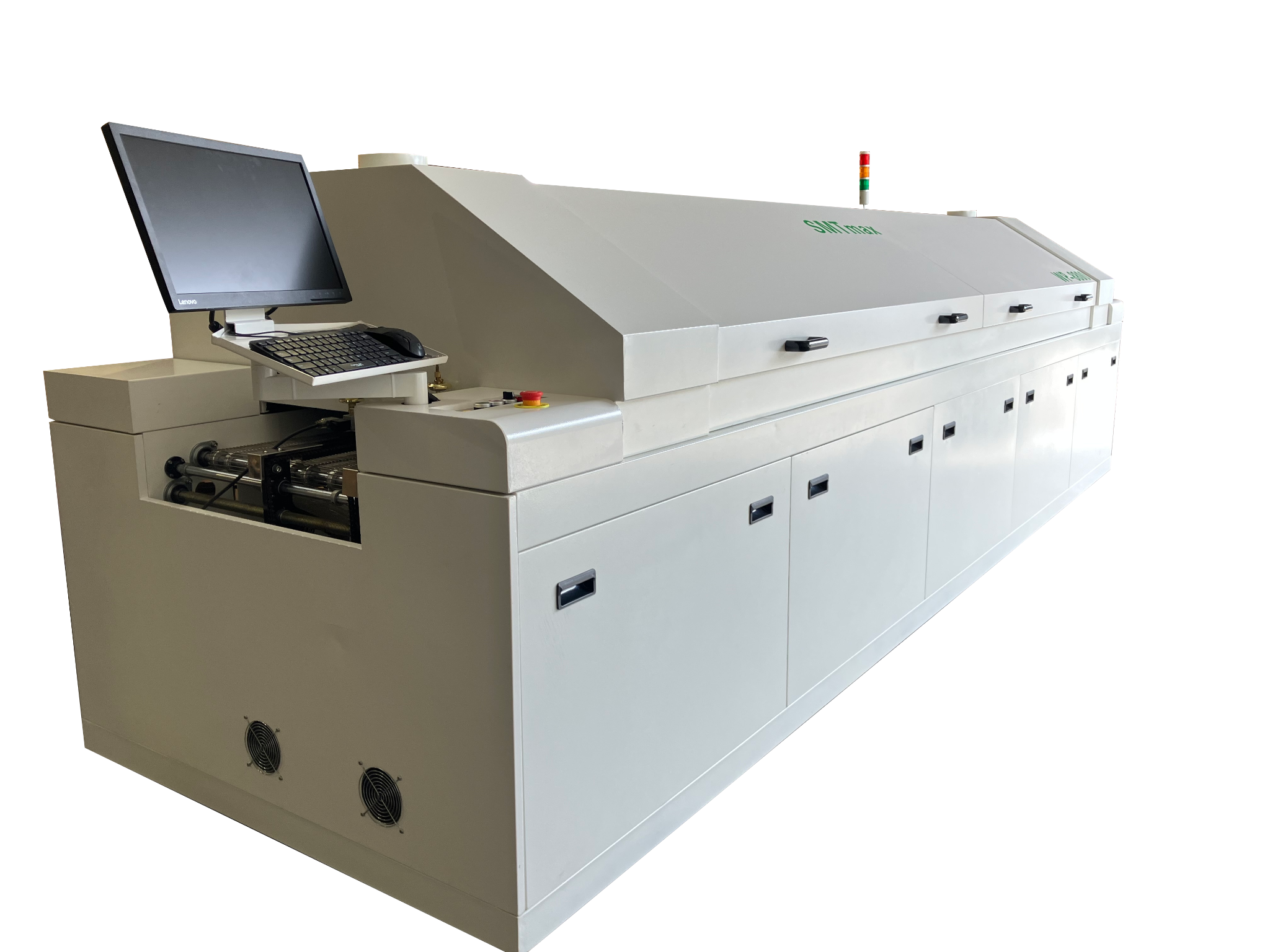

A full computer and PLC control system manages oven operation and process parameters. The conveyor uses a mesh-belt and guide-rail transmission system with frequency-controlled speed adjustment for repeatable inline processing.
This section is ready for the WP-8800 YouTube video when available.
| Model | WP-8800 |
|---|---|
| System type | Inline hot-air convection reflow oven |
| Upper heating zones | 8 |
| Lower heating zones | 8 |
| Total temperature-control zones | 16 |
| Temperature control accuracy | ±2°C |
| Conveyor width | 600 mm |
| Conveyor speed | 200–1330 mm/min |
| Conveyor system | Mesh belt + guide rail transmission |
| Control system | Full computer + PLC centralized control |
| Thermal profiling | Built-in 3-point profiler with K-type sensors |
| Power supply | 220 V, 3 phase |
| Dimensions | 5000 × 1400 × 1500 mm |
| Weight | Approx. 2800 kg |
| Application | Lead-free SMT reflow production |
Send us your PCB dimensions, production rate, solder paste profile, available power and line-layout requirements. We can help confirm whether the WP-8800 fits your process.
