The top model in the QM lineup combines eight placement heads, 80 feeder positions and a 500 × 380 mm working area for the highest estimated throughput in the range.
Feeders are sold separately. The standard package includes the automatic conveyor, computer and monitor, PPM software, 16 assorted nozzles, feeder-ready ports and one matrix tray bracket.

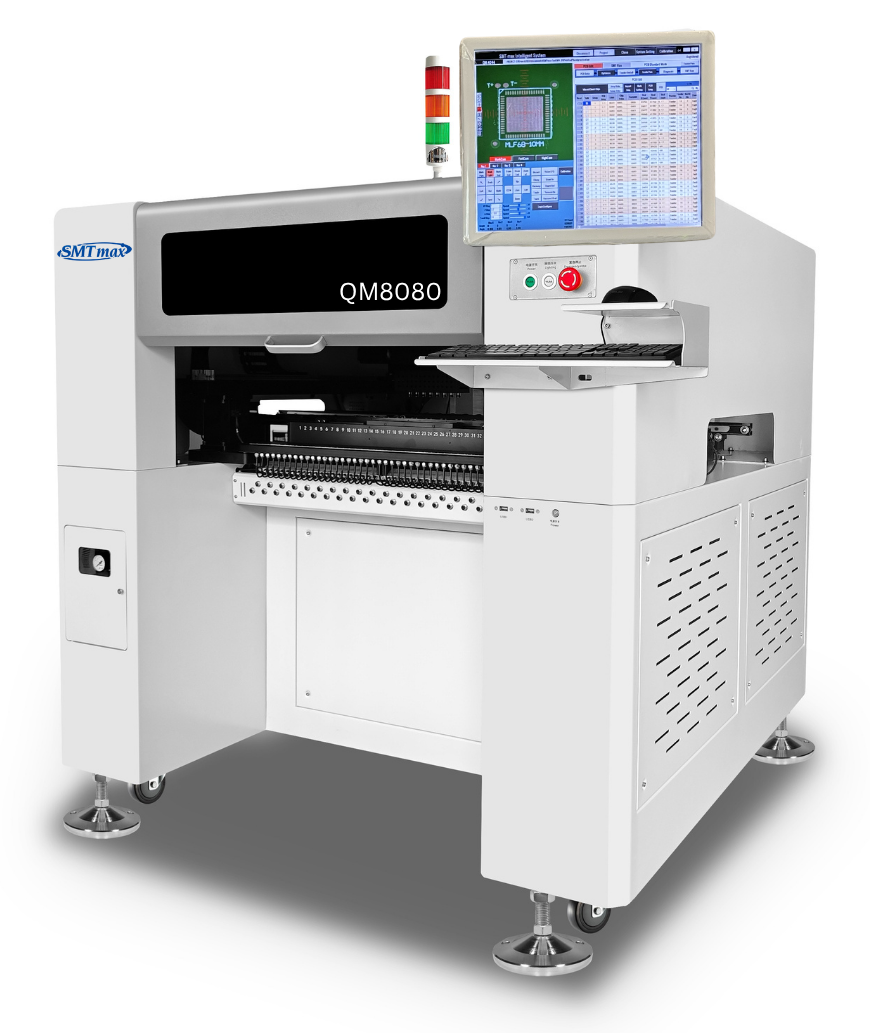

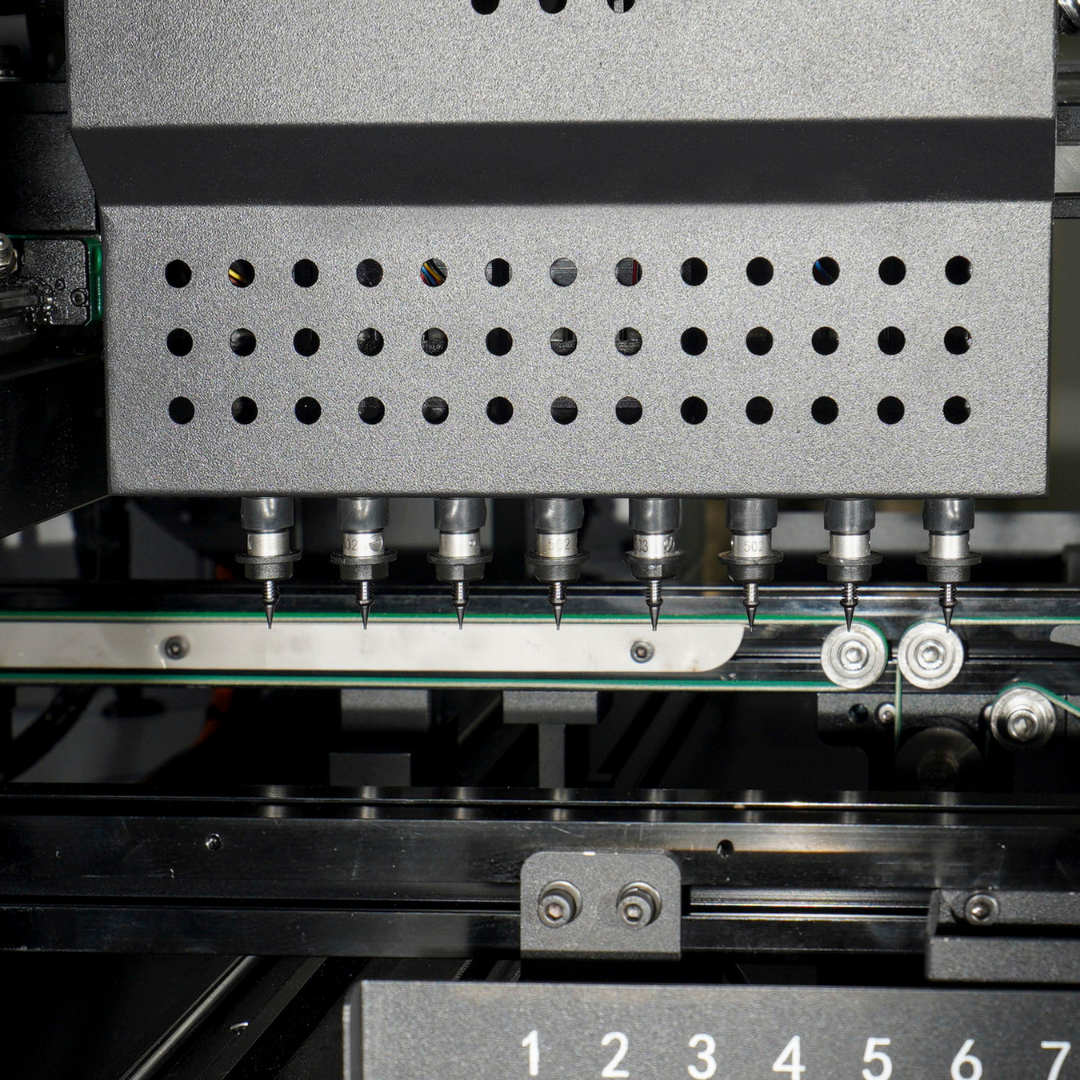

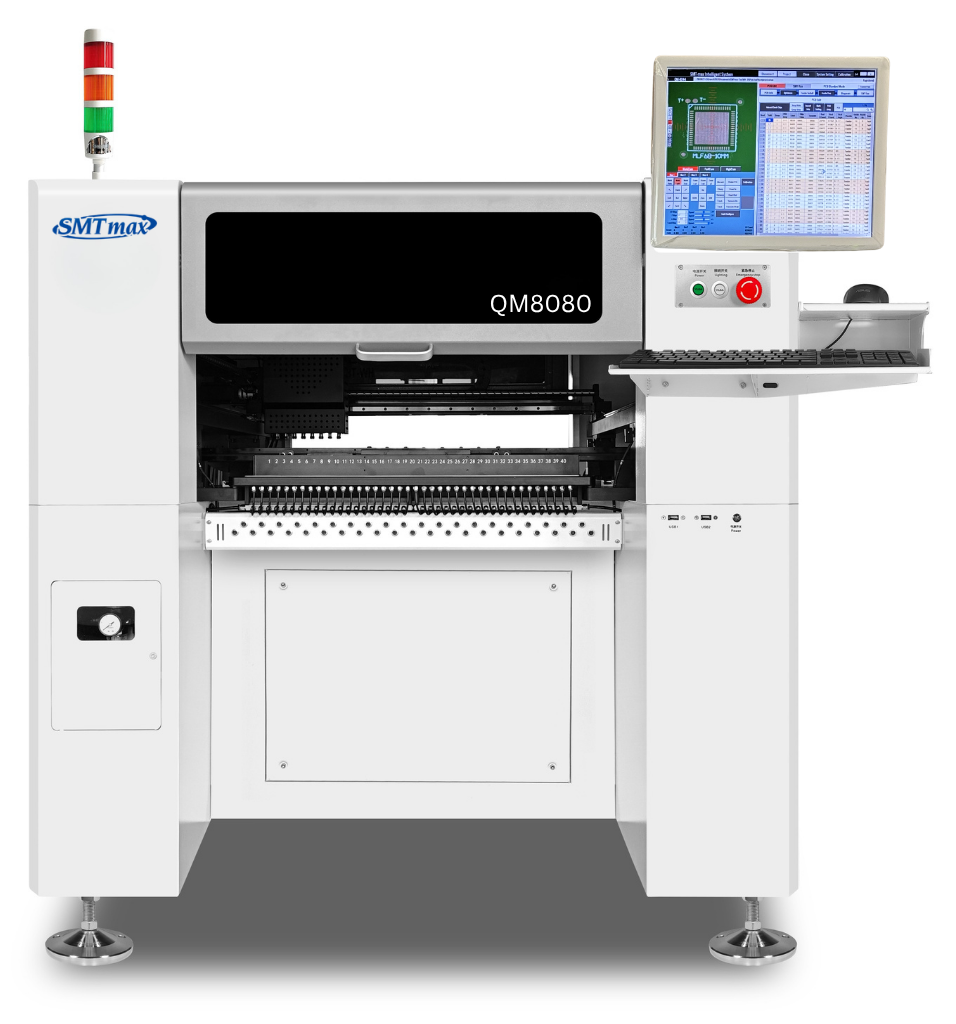

The QM8080 is designed for higher-throughput in-house SMT production. Its eight placement heads and 80 feeder positions increase component capacity while the 500 × 380 mm work area supports larger PCB assemblies.
The vision system combines eight high-speed identification cameras, one HD high-precision camera and a downward-looking mark camera for component recognition, fine-pitch alignment and automatic PCB positioning.
Use this section for a QM8080 production video showing the eight-head placement system, feeder area, automatic conveyor and vision workflow.
| Placement heads | 8 |
|---|---|
| Estimated throughput | 11,000–12,000 PPH |
| Feeder positions | 80 |
| PCB working area | 500 × 380 mm (20 × 15 in) |
| Smallest / largest component | 0201 / 30 × 30 mm |
| Maximum component height | ≤ 7 mm |
| BGA ball pitch | 0.3 mm or larger |
| Positioning accuracy | 0.01 mm |
| Repeated mounting accuracy | 0.02 mm |
| Recognition devices | 8 high-speed identification cameras + 1 HD high-precision camera + 1 downward-looking mark camera |
| Recognition methods | Vision-assisted recognition for IC, QFP, BGA and common SMT packages |
| PCB conveyor mode | Fully automatic with automatic PCB positioning |
| Mark positioning | Manual / automatic |
| Programming | Automatic programming after importing PCB coordinate files |
| XY motion | Double linear motion guide + double ground ball screw |
| Operating system | Windows OS |
| Display | 17-inch industrial control display |
| Power | 110 V / 220 V |
| Average power | 800 W |
| Air pressure | 60–80 PSI |
| Track adjustment | Electric |
| Nozzle buffer range | 4.5 mm |
| Z-axis maximum step | 20 mm |
| Component rotation | ±180° |
| Drive system | AC servo motor |
| Machine dimensions | 54 × 59 × 56 in |
| Weight | 1,874 lb net / 1,964 lb gross |
